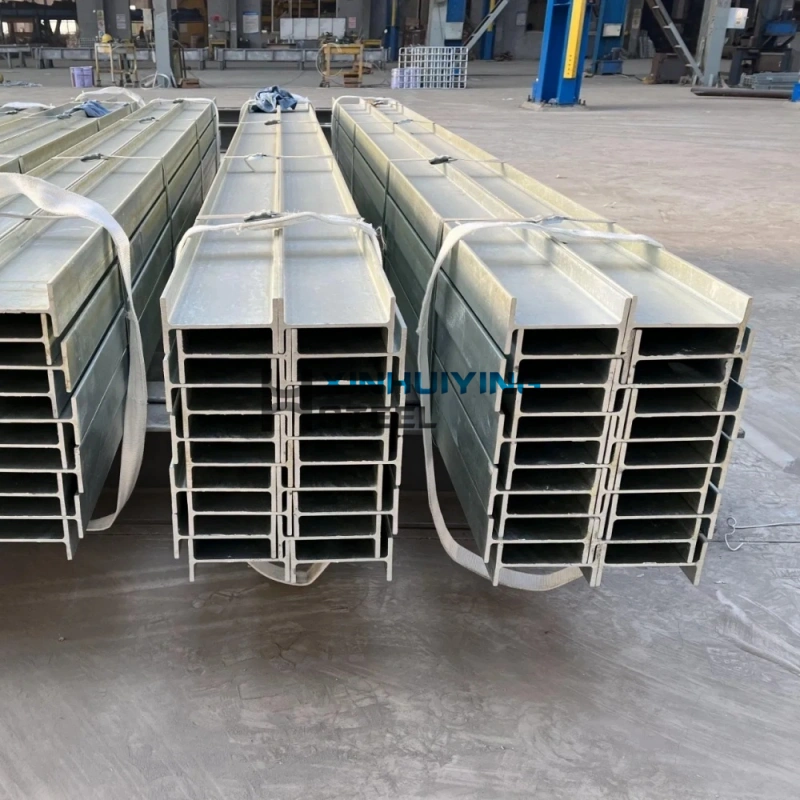

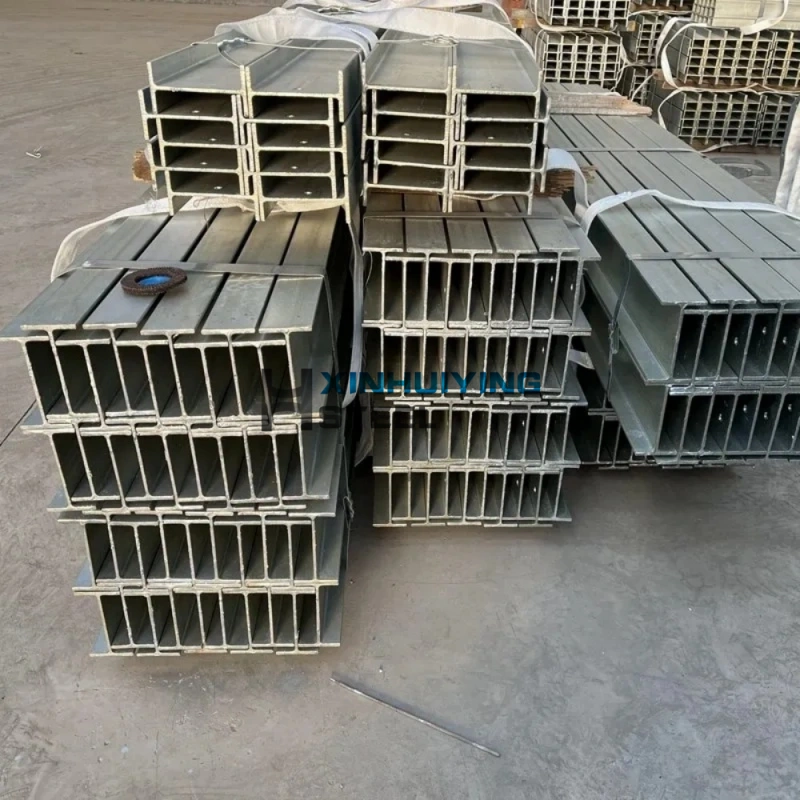

Hot Dipped Galvanized H Beam 150UB14
UNIVERSAL BEAMS
Specification: AS/NZS 3679.1 : 2016 –Grade 300
Size Range: 150UB–610UB
Length Range: 900mm–12000mm (Cut to any length as required)
Hot dipped galvanized:600g/㎡（85μm）
UNIVERSAL COLUMNS
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100UC–310UC
Length Range: 900mm–12000mm (Cut to any length as required)
Hot dipped galvanized:600g/㎡（85μm）
PARALLEL FLANGE CHANNELS
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 75PFC–380PFC
Length Range: 900mm–12000mm (Cut to any length as required)
Hot dipped galvanized:600g/㎡（85μm）
Retaining wall steel 90 Degree Corner posts
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100PFC-150PFC
Length Range: 900mm–12000mm (Cut to any length as required)
Hot dipped galvanized:600g/㎡（85μm）
Retaining wall steel 45 Degree Corner posts
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100PFC-150PFC
Length Range: 900mm–12000mm (Cut to any length as required)
Hot dipped galvanized:600g/㎡（85μm）
PARAMETERS
|
Section: Universal Beams (UB) Grade: 300MPa |
|||||||
|
Size Specification (mm) |
Weight (kg/m) |
Metre/ tonne |
Depth of Section |
Flange (mm) |
Web (mm) |
||
|
Width |
thickness |
depth |
thickness |
||||
|
150 UB |
14.0 |
71 |
150 |
75 |
7.0 |
136 |
5.0 |
|
150 UB |
18.0 |
56 |
155 |
75 |
9.5 |
136 |
6.0 |
|
180 UB |
16.1 |
62 |
173 |
90 |
7.0 |
159 |
4.5 |
|
180 UB |
18.1 |
55 |
175 |
90 |
8.0 |
159 |
5.0 |
|
180 UB |
22.2 |
45 |
179 |
90 |
10.0 |
159 |
6.0 |
|
200 UB |
18.2 |
55 |
198 |
99 |
7.0 |
184 |
4.5 |
|
200 UB |
22.3 |
45 |
202 |
133 |
7.0 |
188 |
5.0 |
|
200 UB |
25.4 |
39 |
203 |
133 |
7.8 |
188 |
5.8 |
|
200 UB |
29.8 |
34 |
207 |
134 |
9.6 |
188 |
6.3 |
|
250 UB |
25.7 |
39 |
248 |
124 |
8.0 |
232 |
5.0 |
|
250 UB |
31.4 |
32 |
252 |
146 |
8.6 |
234 |
6.1 |
|
250 UB |
37.3 |
27 |
256 |
146 |
10.9 |
234 |
6.4 |
|
310 UB |
32.0 |
31 |
298 |
149 |
8.0 |
282 |
5.5 |
|
310 UB |
40.4 |
25 |
304 |
165 |
10.2 |
284 |
6.1 |
|
310 UB |
46.2 |
22 |
307 |
166 |
11.8 |
284 |
6.7 |
|
360 UB |
44.7 |
22 |
352 |
171 |
9.7 |
333 |
6.9 |
|
360 UB |
50.7 |
20 |
356 |
171 |
11.5 |
333 |
7.3 |
|
360 UB |
56.7 |
18 |
359 |
172 |
13.0 |
333 |
8.0 |
|
410 UB |
53.7 |
19 |
403 |
178 |
10.9 |
381 |
7.6 |
|
410 UB |
59.7 |
17 |
406 |
178 |
12.8 |
381 |
7.8 |
|
460 UB |
67.1 |
15 |
454 |
190 |
12.7 |
428 |
8.5 |
|
460 UB |
74.6 |
13 |
457 |
190 |
14.5 |
428 |
9.1 |
|
460 UB |
82.1 |
12 |
460 |
191 |
16.0 |
428 |
9.9 |
|
530 UB |
82.0 |
12 |
528 |
209 |
13.2 |
502 |
9.6 |
|
530 UB |
92.4 |
11 |
533 |
209 |
15.6 |
502 |
10.2 |
|
610 UB |
101.0 |
10 |
602 |
228 |
14.8 |
572 |
10.6 |
|
610 UB |
113.0 |
9 |
607 |
228 |
17.3 |
572 |
11.2 |
|
610 UB |
125.0 |
8 |
612 |
229 |
19.6 |
572 |
11.9 |
