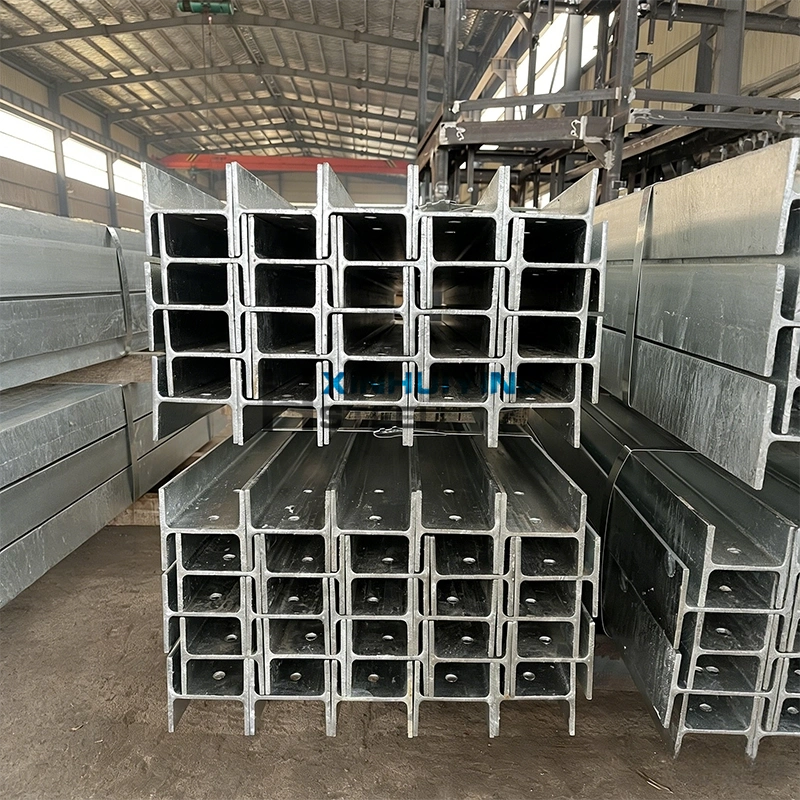

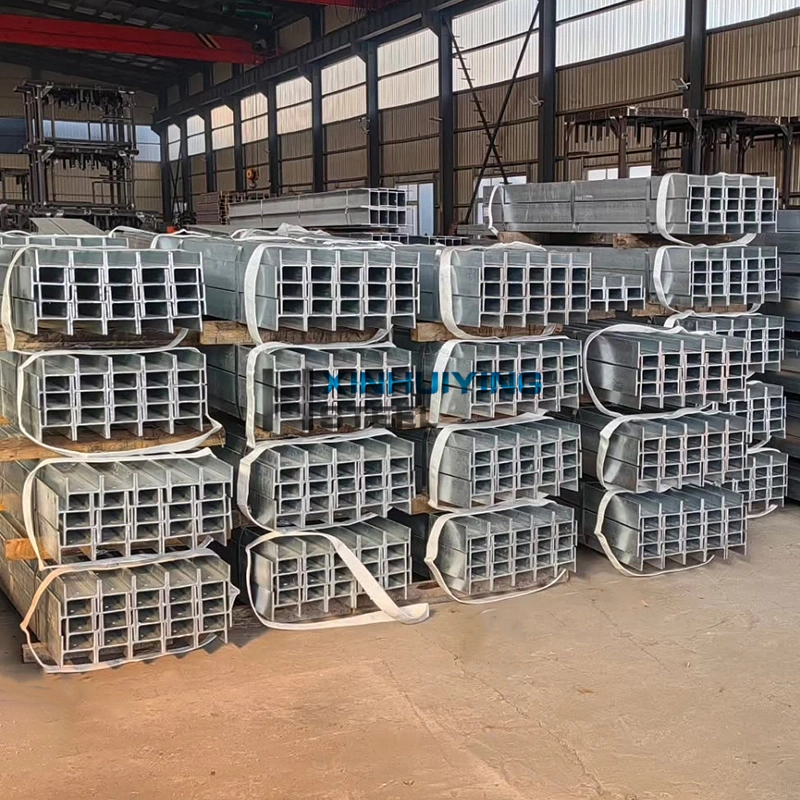

Galvanized Universal Column

Short Description:

As an experienced steel manufacturer, Xinhuiying Steel ensures that all structural steel sections are sourced from certified mills with ACRS accreditation, guaranteeing reliable quality and full compliance with Australian standards. With sizes ranging from 100UC to 310UC, we are able to meet a variety of project needs.

Get a Free Quote

Product Detail

Product Tags

PRODUCT DESCRIPTION

Hot dipped galvanized Universal Beams, Universal Columns and Parallel Flange Channels
UNIVERSAL BEAMS
Specification: AS/NZS 3679.1 : 2016 –Grade 300
Size Range: 150UB–610UB
Length Range: 900mm–12000mm (Cut to any length as required)
Hot dipped galvanized:600g/㎡（85μm）

UNIVERSAL COLUMNS

Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100UC–310UC
Length Range: 900mm–12000mm (Cut to any length as required)
Hot dipped galvanized:600g/㎡（85μm）

PARALLEL FLANGE CHANNELS

Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 75PFC–380PFC
Length Range: 900mm–12000mm (Cut to any length as required)
Hot dipped galvanized:600g/㎡（85μm）
Retaining wall steel 90 Degree Corner posts
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100PFC-150PFC
Length Range: 900mm–12000mm (Cut to any length as required)
Hot dipped galvanized:600g/㎡（85μm）
Retaining wall steel 45 Degree Corner posts
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100PFC-150PFC

Length Range: 900mm–12000mm (Cut to any length as required)
Hot dipped galvanized:600g/㎡（85μm）

PARAMETERS

Section: Universal Columns (UC) Standard: AS/NZS 3679.1 Grade: 300MPa
Size Specification (mm)	Weight (kg/m)	Metre/ tonne	Depth of Section	Flange (mm)		Web (mm)
Size Specification (mm)	Weight (kg/m)	Metre/ tonne	Depth of Section	Width	thickness	depth	thickness
100 UC	14.8	68	97	99	7.0	83	5.0
150 UC	23.4	43	152	152	6.8	139	6.1
150 UC	30.0	33	158	153	9.4	139	6.6
150 UC	37.2	27	162	154	11.5	139	8.1
200 UC	46.2	22	203	203	11.0	181	7.3
200 UC	52.2	19	206	204	12.5	181	8.0
200 UC	59.5	17	210	205	14.2	181	9.3
250 UC	72.9	14	254	254	14.2	225	8.6
250 UC	89.5	11	260	256	17.3	225	10.5
310 UC	96.8	10	308	305	15.4	277	9.9
310 UC	118.0	8	315	307	18.7	277	11.9
310 UC	137.0	7	321	309	21.7	277	13.8
310 UC	158.0	6	327	311	25.0	277	15.7
