Australian Standard Galvanised Steel Stringers

What you need to know about our stair stringers

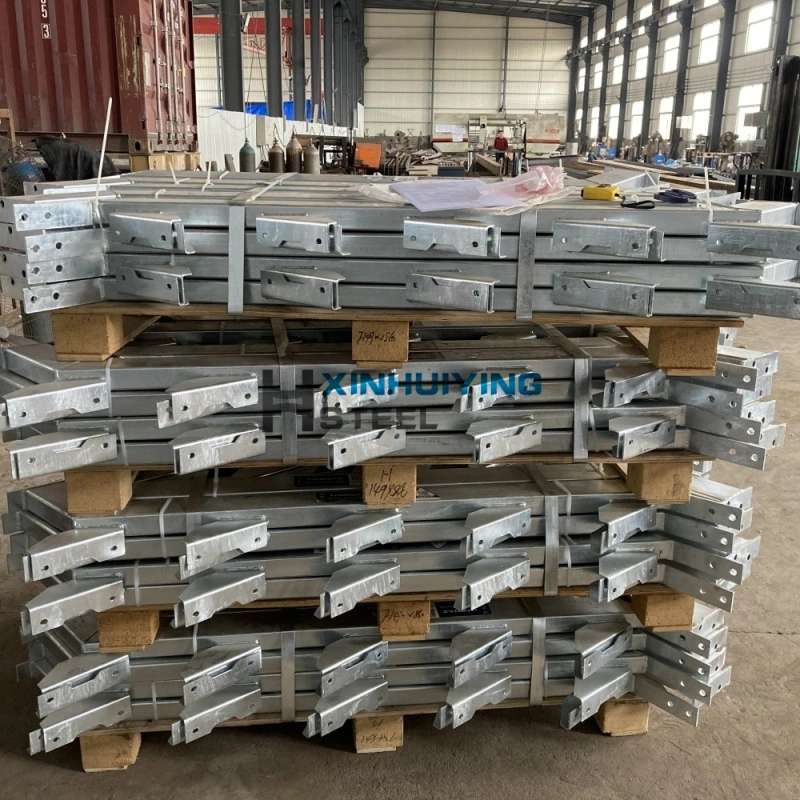

1)1 step - 17 step hot dip galvanized stringers kept in stock

2)Stock stringers have 175mm rise and 254mm going, but we can fabricate this to your requirements

3)Australian steel, robust and weather resistant

4)Made from high-strength dual-grade 350/450 - 100x50mm rectangular tube section (RHS)

5)Brackets are fully welded onto the RHS

6)Hot dip galvanized with an 85 micron thick zinc coating inside and out to AS4680

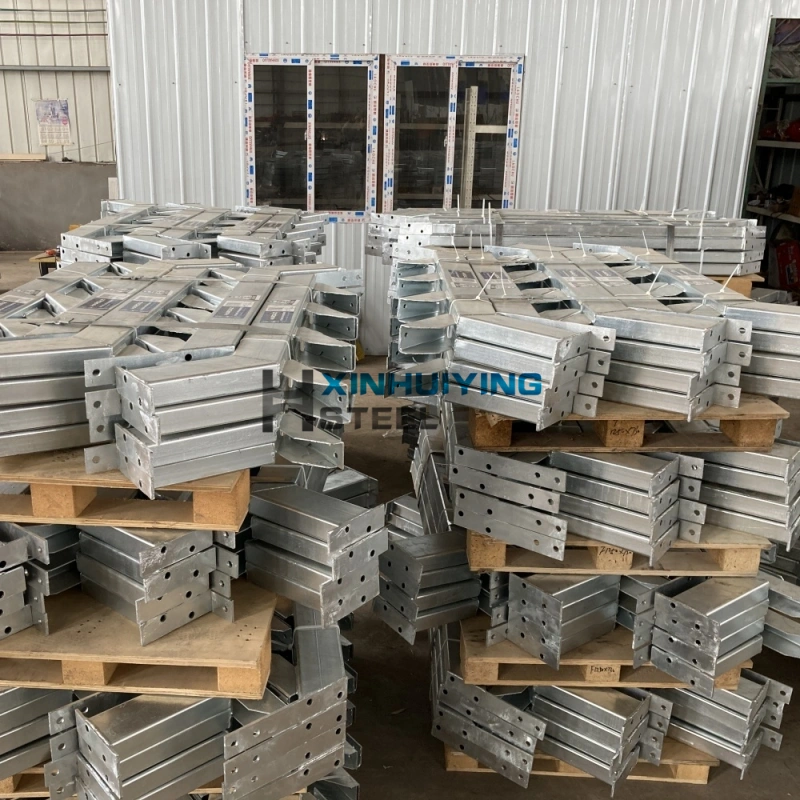

7)Tread brackets pressed from grade 300 material

8)Pre-cambered so you get no distortion

Base fixing

• 1)Into concrete  (kept in stock)

  2)Onto concrete

  3)Landing to landing

  4)Custom-made to your requirements

Finishes

1)Hot-dipped galvanized (kept in stock)

2)Primed - marine grade industrial primer (optional)

3)Powder coated to any colour (optional)

4)Ask our helpful sales team about delivery.

The rise is the vertical measurement taken from one step level to the next. Standard rise is 175mm.

The going is the horizontal measurement taken from the front of one step to the next. Standard going is 250mm.

The picture below illustrates the rise and going of our stair stringers.
