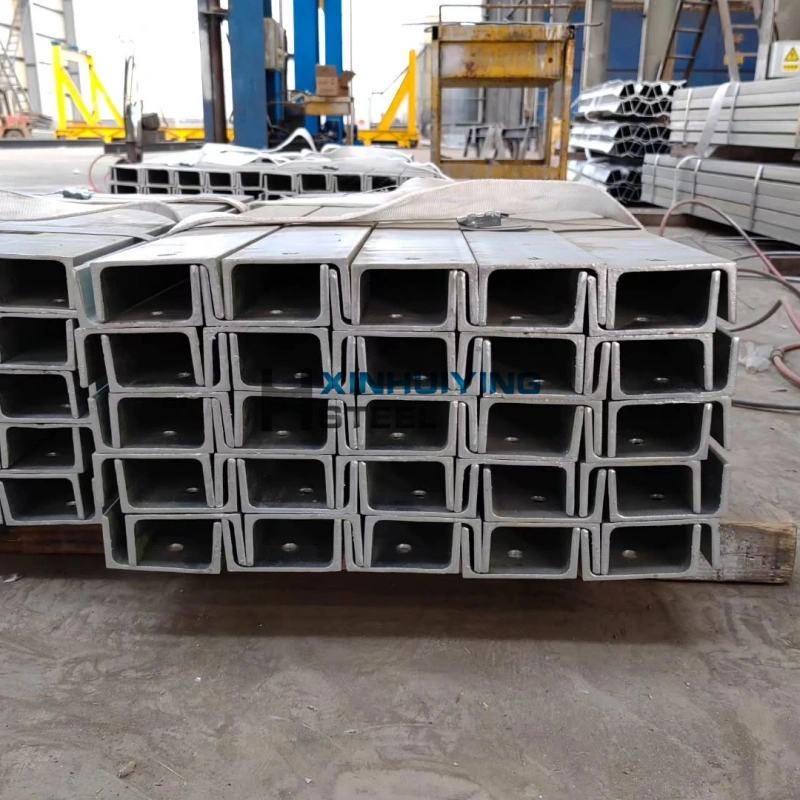

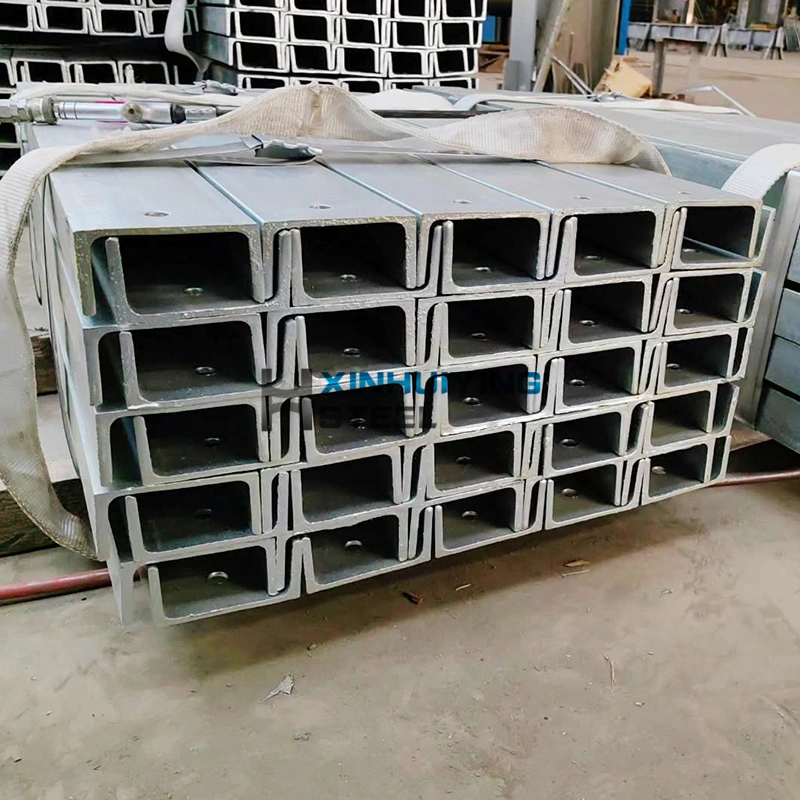

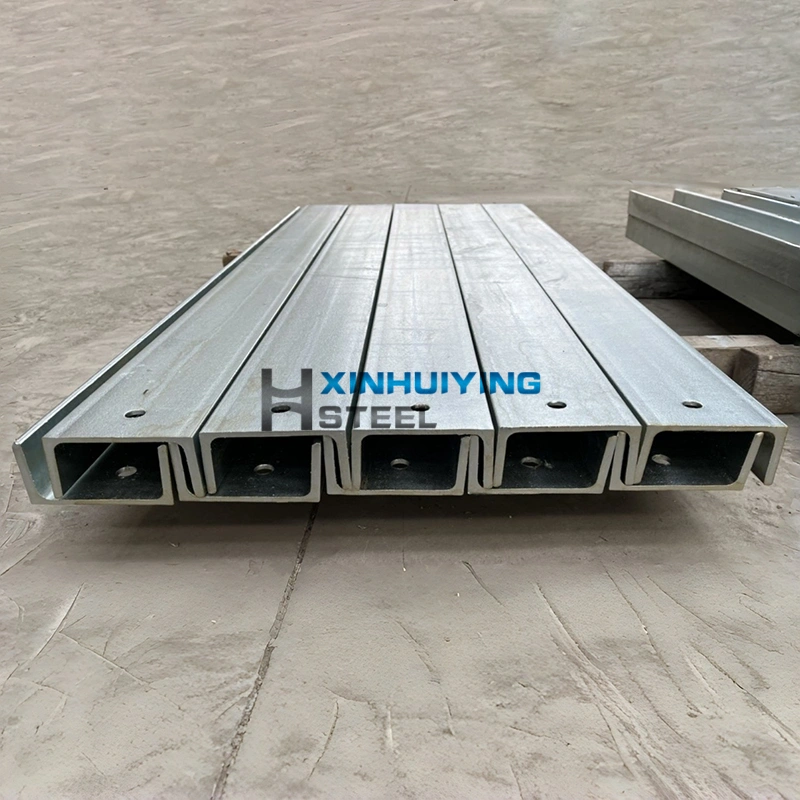

Galvanized 100PFC Steel Channel

Short Description:

Hot dipped galvanized Universal Beams, Universal Columns and Parallel Flange Channels
Xinhuiying Steel Supplies carries the full range of lengths and foot weights for Universal beams, Universal columns and Parallel flange channels.

All of our structural steel beams are procured from mills that have ACRS accreditation / certification.

Get a Free Quote

Product Detail

Product Tags

UNIVERSAL BEAMS
Specification: AS/NZS 3679.1 : 2016 –Grade 300
Size Range: 150UB–610UB
Length Range: 900mm–12000mm(Cut to and lengths as clients requires）
Hot dipped galvanized:600g/㎡（85μm）

UNIVERSAL COLUMNS
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100UC–310UC
Length Range: 900mm–12000mm(Cut to and lengths as clients requires）
Hot dipped galvanized:600g/㎡（85μm）

PARALLEL FLANGE CHANNELS
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 75PFC–380PFC
Length Range: 900mm–12000mm(Cut to and lengths as clients requires）
Hot dipped galvanized:600g/㎡（85μm）

Retaining Wall Steel 90 Degree Corner Posts
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100PFC-150PFC
Length Range: 900mm–12000mm(Cut to and lengths as clients requires）
Hot dipped galvanized:600g/㎡（85μm）

Retaining Wall Steel 45 Degree Corner Posts
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100PFC-150PFC
Length Range: 900mm–12000mm(Cut to and lengths as clients requires）
Hot dipped galvanized:600g/㎡（85μm）

Parallel Flange Channels

A Parallel Flange Channel is a steel profile with a "C"-shaped cross-section, featuring two parallel flanges connected by a vertical web. Unlike tapered flange channels, the flanges of a PFC are flat and parallel to each other, providing better load-bearing characteristics and making them easier to work with in construction.

As a reputable China steel factory, Xinhuiying Steel delivers not only premium products but also customized fabrication solutions to meet the specific needs of contractors, builders, and wholesalers around the world.

PARAMETERS

Tolerance performance standard	AS/NZS3679.1:2010
Name	Type	Specifications	(kg/m)
PFC	PFC75*40	75403.8*6.1	5.9
PFC	PFC100*50	100504.2*6.7	8.31
PFC	PFC125*65	125654.7*7.5	11.9
PFC	PFC150*75	150756*9.5	17.7
PFC	PFC200*75	200756*12	22.9
PFC	PFC230*75	230756.5*12	25.1
PFC	PFC250*90	250908*15	35.5
PFC	PFC300*90	300908*16	40.1
PFC	PFC380*100	38010010*17.5	55.2
