Hot Dipped Galvanized 45 Degree Corner Posts
UNIVERSAL BEAMS (UB)
Specification: AS/NZS 3679.1 : 2016 –Grade 300
Size Range: 150UB–610UB
Length Range: 900mm–12000mm(Cut to and lengths as clients requires）
Hot dipped galvanized:600g/㎡（85μm）
UNIVERSAL COLUMNS (UC)
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100UC–310UC
Length Range: 900mm–12000mm(Cut to and lengths as clients requires）
Hot dipped galvanized:600g/㎡（85μm）
PARALLEL FLANGE CHANNELS (PFC)
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 75PFC–380PFC
Length Range: 900mm–12000mm(Cut to and lengths as clients requires）
Hot dipped galvanized:600g/㎡（85μm）
Retaining Wall Steel 90 Degree Corner Posts (90° and 45°)
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100PFC-150PFC
Length Range: 900mm–12000mm(Cut to and lengths as clients requires）
Hot dipped galvanized:600g/㎡（85μm）

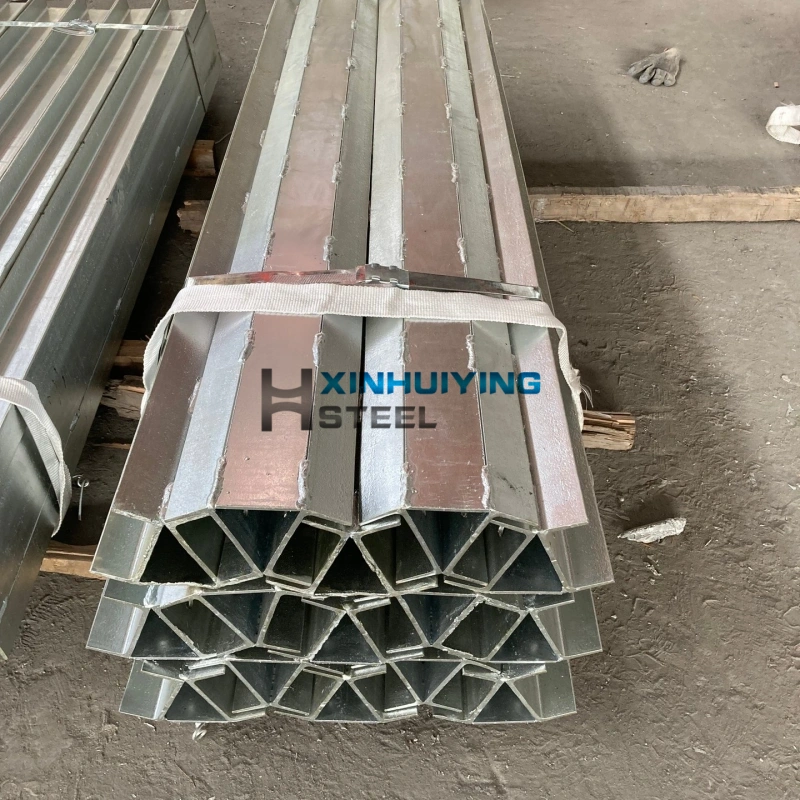

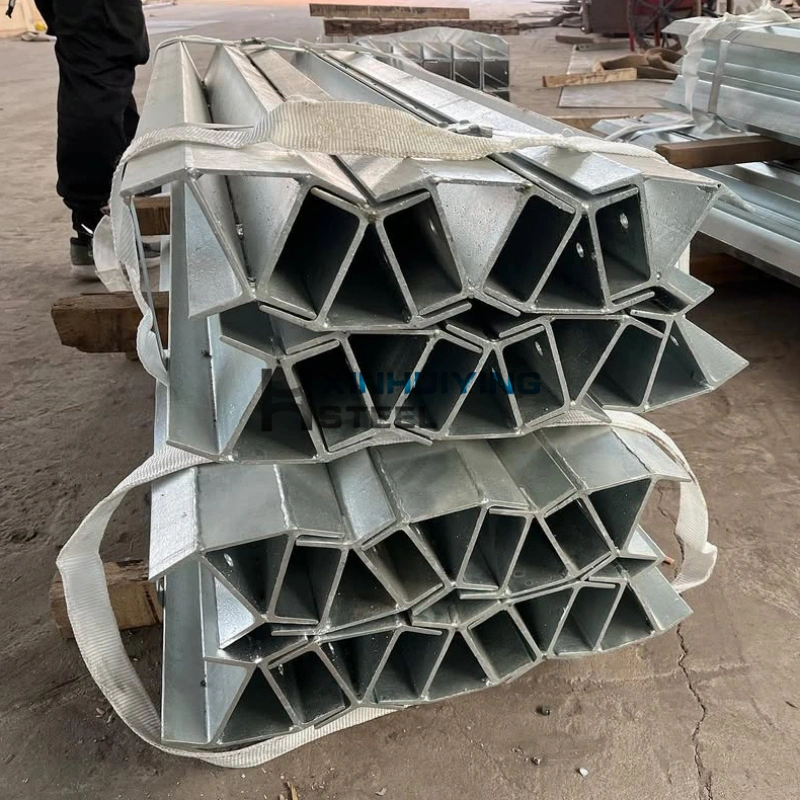

Retaining Wall Steel 45 Degree Corner Posts
Specification: AS/NZS 3679.1 : 2016–Grade 300
Size Range: 100PFC-150PFC
Length Range: 900mm–12000mm(Cut to and lengths as clients requires）
Hot dipped galvanized:600g/㎡（85μm）
45 Degree Corner Channel Posts are the perfect solution for creating strong and durable retaining walls with seamless corners. These corner channel posts are made from strong galvanized steel and designed carefully to resist rust and last a long time.
PARAMETERS
|
Tolerance performance standard |
AS/NZS3679.1:2010 |
|
|
|
Name |
Type |
Specifications |
(kg/m) |
|
PFC |
PFC75*40 |
75*40*3.8*6.1 |
5.9 |
|
PFC |
PFC100*50 |
100*50*4.2*6.7 |
8.31 |
|
PFC |
PFC125*65 |
125*65*4.7*7.5 |
11.9 |
|
PFC |
PFC150*75 |
150*75*6*9.5 |
17.7 |
|
PFC |
PFC200*75 |
200*75*6*12 |
22.9 |
|
PFC |
PFC230*75 |
230*75*6.5*12 |
25.1 |
|
PFC |
PFC250*90 |
250*90*8*15 |
35.5 |
|
PFC |
PFC300*90 |
300*90*8*16 |
40.1 |
|
PFC |
PFC380*100 |
380*100*10*17.5 |
55.2 |
