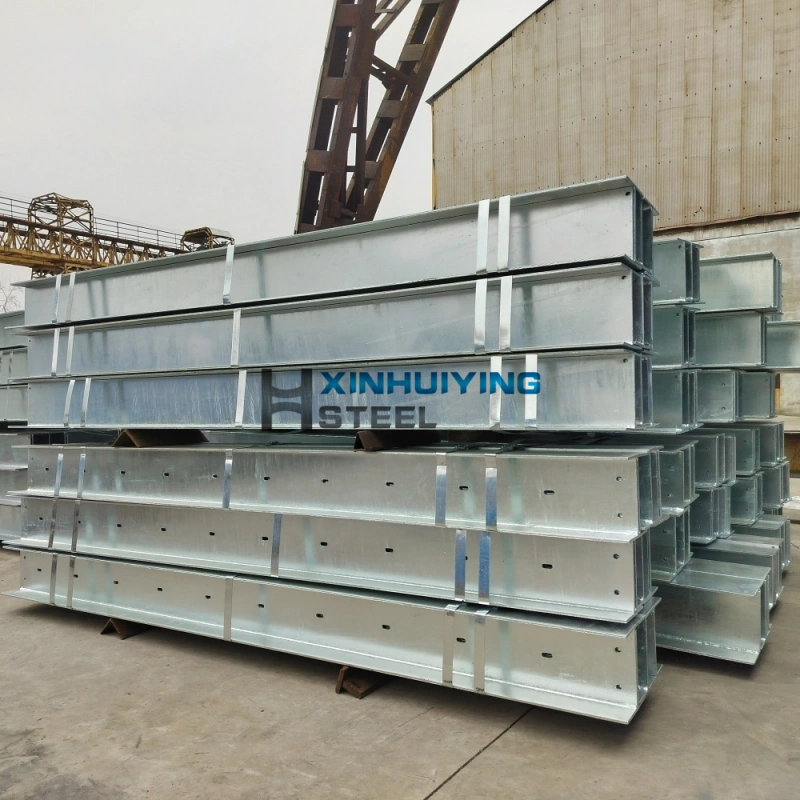

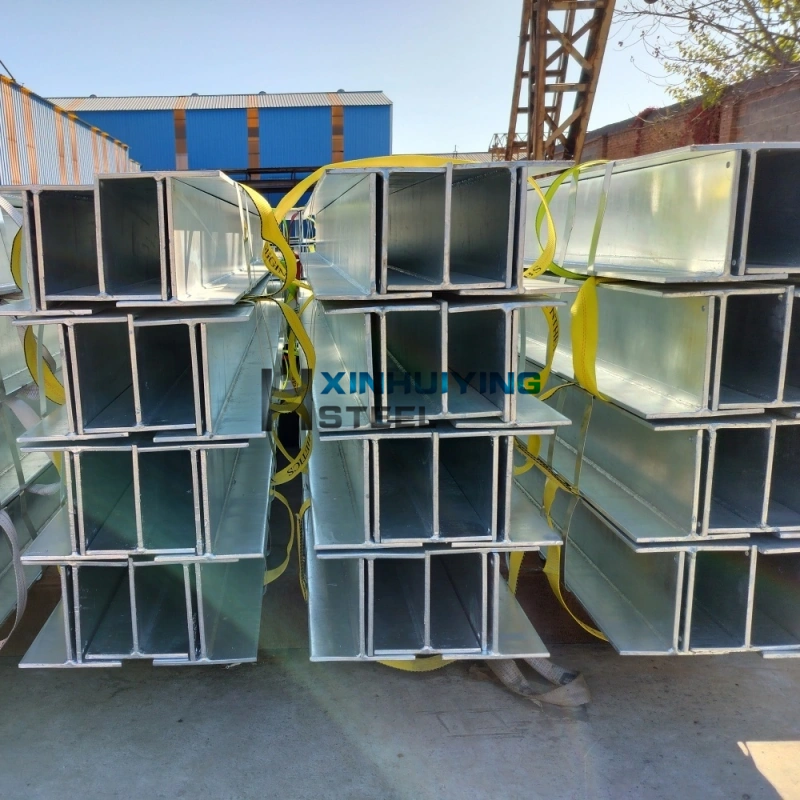

Hot dipped galvanized weld T bar T beam
Our welded T-bar sizes range from 150×6×150×6mm to 400×20×400×20mm, and can also be customized to your specifications. We use high-quality structural steels to ensure strength and durability. All materials are processed in accordance with globally recognized standards.
All T-bars are hot dip galvanised (up to 600g/m²) or primed to ensure excellent corrosion resistance in both indoor and outdoor environments. Each T-bar features full length continuous welds and is strictly controlled for straightness, camber, tilt and flatness within ±2mm, ensuring a reliable fit and surface finish when assembled on site.
Why choose our T-bars:
- Custom sizes and material grades available on request
- Manufactured in strict accordance with AS/NZS 1554.5 and ISO 9001 quality systems
- Strong and durable, easy to install and remove
- Reusable and recyclable - environmentally friendly and cost-effective
- Excellent load bearing capacity and structural rigidity
- Ideal for projects with tight deadlines
Typical applications include:
- Lintels for residential and garage openings
- Structural frames for civil and industrial buildings
- Bridges, steel platforms and other load-bearing frames
For detailed specifications or custom quotes, please feel free to contact us.
|
We are specialized in Prime steel T bar, Sizes as follow: |
|||||||
|
Section |
Size |
Length(m) |
kg/Piece |
Section |
Size |
Length(m) |
Kg/Piece |
|
T Bar |
200*6*200*6 |
0.9 |
16.956 |
T Bar |
200*10*200*10 |
2.1 |
65.94 |
|
T Bar |
200*6*200*6 |
1.2 |
22.608 |
T Bar |
200*10*200*10 |
2.4 |
75.36 |
|
T Bar |
200*6*200*6 |
1.5 |
28.26 |
T Bar |
200*10*200*10 |
2.7 |
84.78 |
|
T Bar |
200*6*200*6 |
1.8 |
33.912 |
T Bar |
200*10*200*10 |
3 |
94.2 |
|
T Bar |
200*6*200*6 |
2.1 |
39.564 |
T Bar |
200*10*200*10 |
3.3 |
103.62 |
|
T Bar |
200*6*200*6 |
2.4 |
45.216 |
T Bar |
200*10*200*10 |
3.6 |
113.04 |
|
T Bar |
200*6*200*6 |
2.7 |
50.868 |
T Bar |
200*10*200*10 |
3.9 |
122.46 |
|
T Bar |
200*6*200*6 |
3 |
56.52 |
T Bar |
200*10*200*10 |
4.2 |
131.88 |
|
T Bar |
200*6*200*6 |
3.3 |
62.172 |
T Bar |
200*10*200*10 |
4.5 |
141.3 |
|
T Bar |
200*6*200*6 |
3.6 |
67.824 |
T Bar |
200*10*200*10 |
5.2 |
163.28 |
|
T Bar |
200*8*200*6 |
0.9 |
19.8 |
T Bar |
200*10*200*10 |
5.4 |
169.56 |
|
T Bar |
200*8*200*6 |
1.2 |
26.4 |
T Bar |
200*10*200*10 |
5.7 |
178.98 |
|
T Bar |
200*8*200*6 |
1.5 |
33 |
T Bar |
200*10*200*10 |
6 |
188.4 |
|
T Bar |
200*8*200*6 |
1.8 |
39.6 |
T Bar |
250*12*200*10 |
3.9 |
153.075 |
|
T Bar |
200*8*200*6 |
2.1 |
46.2 |
T Bar |
250*12*200*10 |
4.2 |
164.85 |
|
T Bar |
200*8*200*6 |
2.4 |
52.8 |
T Bar |
250*12*200*10 |
4.5 |
176.625 |
|
T Bar |
200*8*200*6 |
2.7 |
59.4 |
T Bar |
250*12*200*10 |
4.8 |
188.4 |
|
T Bar |
200*8*200*6 |
3 |
66 |
T Bar |
250*12*200*10 |
5.1 |
200.175 |
|
T Bar |
200*8*200*6 |
3.3 |
72.6 |
T Bar |
250*12*200*10 |
5.4 |
211.95 |
|
T Bar |
200*8*200*6 |
3.6 |
79.2 |
T Bar |
250*12*200*10 |
5.7 |
223.725 |
|
T Bar |
200*8*200*6 |
3.9 |
85.8 |
T Bar |
250*12*200*10 |
6 |
235.5 |
|
T Bar |
250*10*200*6 |
4.2 |
121.968 |
T Bar |
250*10*200*10 |
4.2 |
148.386 |
|
T Bar |
250*10*200*6 |
4.5 |
130.68 |
T Bar |
250*10*200*10 |
4.5 |
158.985 |
|
T Bar |
250*10*200*6 |
4.8 |
139.392 |
T Bar |
250*10*200*10 |
4.8 |
169.584 |
|
T Bar |
250*10*200*6 |
5.1 |
148.104 |
T Bar |
250*10*200*10 |
5.1 |
180.183 |
|
T Bar |
250*10*200*6 |
5.2 |
151.008 |
T Bar |
250*10*200*10 |
5.2 |
183.716 |
|
T Bar |
250*10*200*6 |
5.4 |
156.816 |
T Bar |
250*10*200*10 |
5.4 |
190.782 |
|
T Bar |
250*10*200*6 |
5.7 |
165.528 |
T Bar |
250*10*200*10 |
5.7 |
201.381 |
|
T Bar |
250*10*200*6 |
6 |
174.24 |
T Bar |
250*10*200*10 |
6 |
211.98 |
